Round Copper Braids

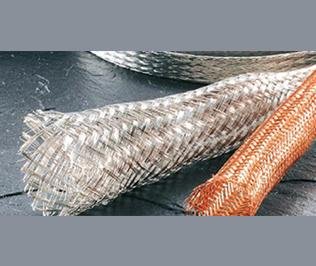

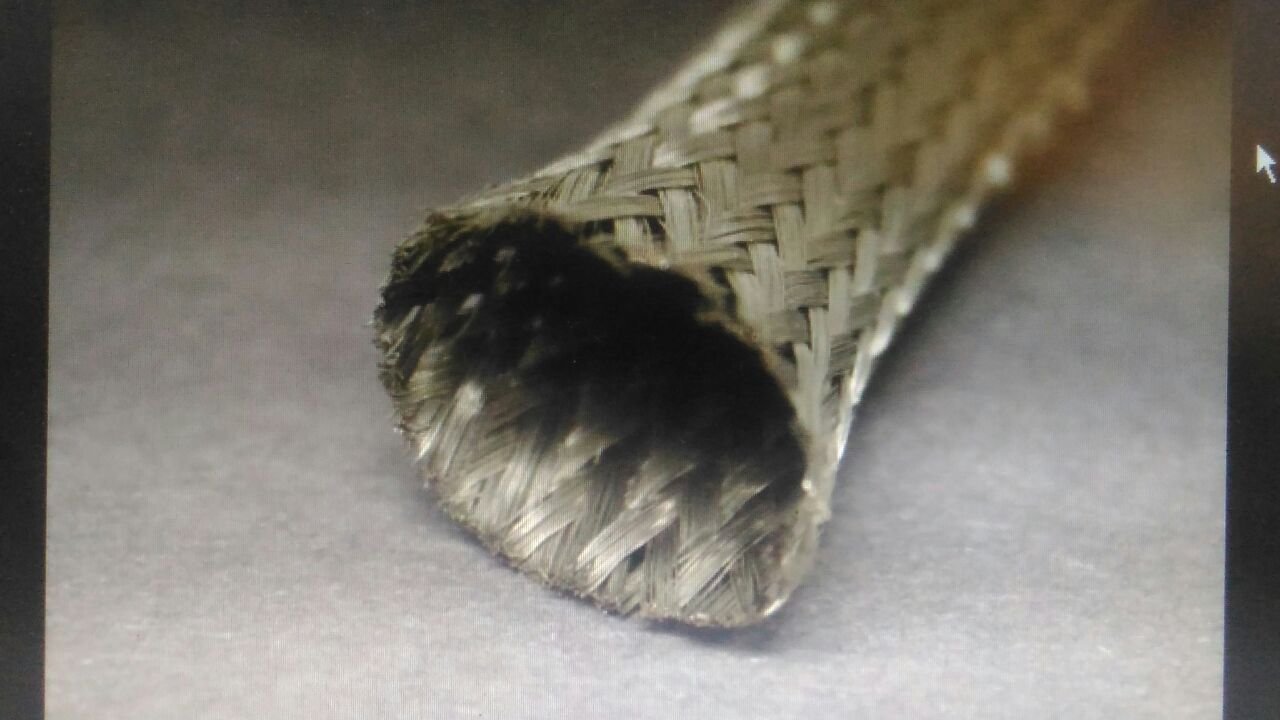

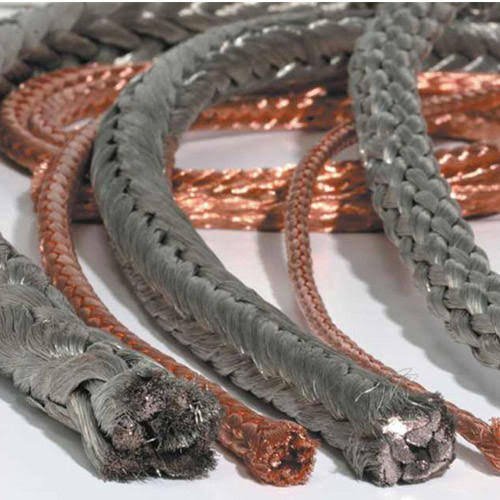

We Reliable Metal & Wire Industries manufacture Round Copper Braids. Round braids are used for carbon brushes, relays, gaskets, telecom, automobiles , earthing etc. Our most economical standard Round copper braids are made from 0.20 diameter wire and are braided into a tube followed by a rolling process.They are used as earthing straps and are also used in numerous electrical components. Highly copper flexible bare, tin & silver coated. Round braids are used for carbon brushes, relays, gaskets, telecom, automobiles, earthing etc.
| Range | 2.5 sq.mm and above |
| Wire Dia | 0.51mm to 0.15mm |
| Material | Electrolytic Copper |
| Finish | Bare Copper/Tinned/Silver |
| Nominal Cross-Sectional (mm2) |
Nominal Outside Diameter (mm) |
Wire Stand Diameter (mm) |
Current Rating (AMPS) |
|---|---|---|---|
| 6 | 4.3 | 0.15 | 0.15 |
| 2.5 | 3 | 0.15 | 37 |
| 4 | 4 | 0.15 | 50 |
| 6 | 5 | 0.15 | 65 |
| 10 | 7 | 0.15 | 90 |
| 16 | 8 | 0.15 | 125 |
| 25 | 10 | 0.15 | 160 |
| 35 | 12 | 0.15 | 210 |
| 50 | 15 | 0.15 | 250 |
| 16 | 8 | 0.2 | 125 |
| 25 | 10 | 0.2 | 160 |
| 35 | 12 | 0.2 | 210 |
| 50 | 15 | 0.2 | 250 |
Other Finish:
- Bare copper / Plain copper / red copper
- Electro tin plated copper
- 99.99% pure Silver electro plated copper
- Enamel coated, which insulates each wire
- And other finishes on request.
Even though many of our products are standard items, we also make special tailor made products made exactly to the requirements of our customers. We offer a wide choice of braid types (flat, round, rope and layered), strand sizes, finishes, termination options (crimped, pressed and swaged),insulation and identification. Our highly flexible earthing connectors and earth leads are commonly used in switchgear, building services and a wide range of industries. We offer competitive pricing and ex-stock or short lead time deliveries.These can be made from electrolytic copper Cu-ETP (grade C101) or from oxygen free copper.
