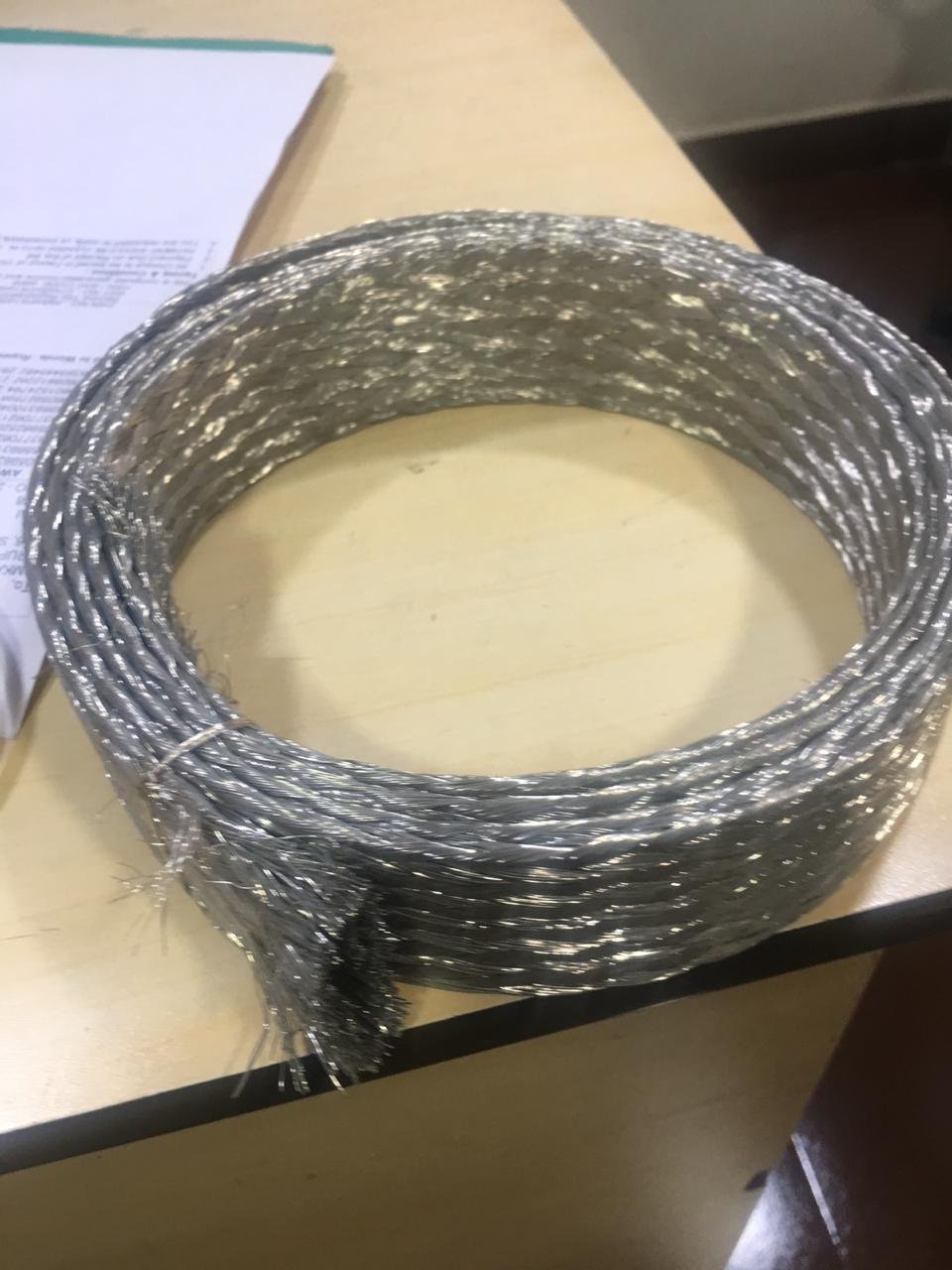

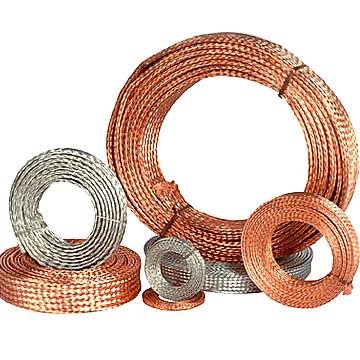

We Reliable Metal & Wire Industries manufacture Copper Braid Our most economical standard copper braid are made from 0.20 diameter wire and are braided into a tube followed by a rolling process to flatten them.They are used as earthing straps and are also used in numerous electrical components. All types can be supplied in non-rolled form, as multiple tubes and for screening. It is Highly copper flexible pressed, Bare, Tin & Silver Coated. Flat Braid is mainly used for Earthing Connection & terminals etc.



Range	25 sq.mm and above
Wire Diameter	0.05mm(47swg) to 0.3mm(30swg)
Material	Electrolytic Copper
Finish	Bare Copper/Tinned/Silver



Technical Specifications(Same Sizes also available with 0.20 mm Diameter)



Nominal area mm	Dimension mm	Wire diameter mm	Current rating amps	Product Code
2.5	6 x 1.00	0.15	36	RMWI-FB - 2.5-36
4	10 x 1.00	0.15	52	RMWI-FB - 4-52
6	12 x 1.00	0.15	66	RMWI-FB - 6-66
10	15 x 1.50	0.15	90	RMWI-FB - 10-90
16	19 x 2.00	0.15	120	RMWI-FB - 16-120
25	25 x 3.00	0.15	150	RMWI-FB- 25 -150
35	25 x 3.50	0.15	200	RMWI-FB- 35 -200
50	30 x 4.50	0.15	250	RMWI-FB- 50 -250
70	32 x 5.00	0.15	300	RMWI-FB- 70 -300
95	37 x 5.00	0.15	350	RMWI-FB- 95 -350
120	45 x 5.00	0.15	400	RMWI-FB- 120 -400
150	50 x 6.00	0.15	500	RMWI-FB- 150-500

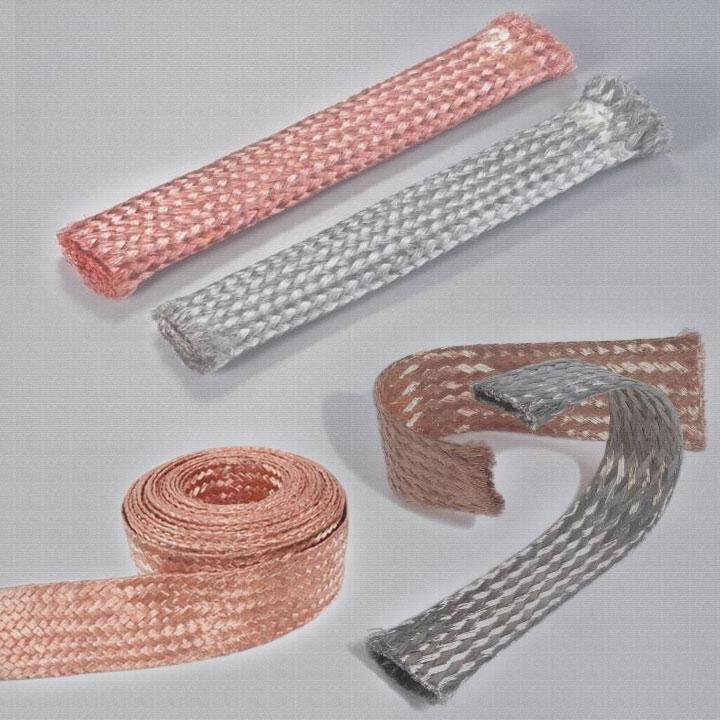

Finish in Copper Braid Available:

• Bare copper / Plain copper / red copper
• Electro tin plated copper
• 99.99% pure Silver electro plated copper
• Enamel coated, which insulates each wire
• And other finishes on request.



We offer a wide choice of Copper Braid types (flat, round, rope and layered), strand sizes, finishes, termination options (crimped, pressed and swaged), insulation and identification. Our highly flexible earthing connectors and earth leads are commonly used in switchgear, building services and a wide range of industries. We offer competitive pricing and ex-stock or short lead time deliveries. These can be made from electrolytic copper Cu-ETP (grade C101) or from oxygen free copper Even though many of our products are standard items, we also make special tailor made products made exactly to the requirements of our customers. We use the finest quality material of Copper Braid to ensure consistency of quality and performance, drawing on our supplier's decades of experience in drawing, stranding and braiding, as well as surface treatment.



Copper Braid Construction

• The construction of Copper braid is usually written as: 48 / 30 / 0.15, where: 48 = the number of carriers 30 =the number of wires per carrier 0.15 = the diameter of each wire in mm
• The cross sectional area (CSA) of a copper braid can be calculated from this information: (Carriers x wires per carrier x wire diameter² x 3.142) / 4 So, for a copper braid with the specification: 48 / 30 / 0.15, this would be: 48 x 30 x 0.15² x 3.142 / 4 = 101.80 =25.45 mm²



NB

• Weight Depend On Lay Pitch
• Configration Will Be Change As Per Carrier
• Nearest Normal Area will Be Achived By Changing Diemeter Of The Wire
• Labling Of Piece Or Reels As Per Customer Requirment
