Flexible Copper Stranded & Braid Rope

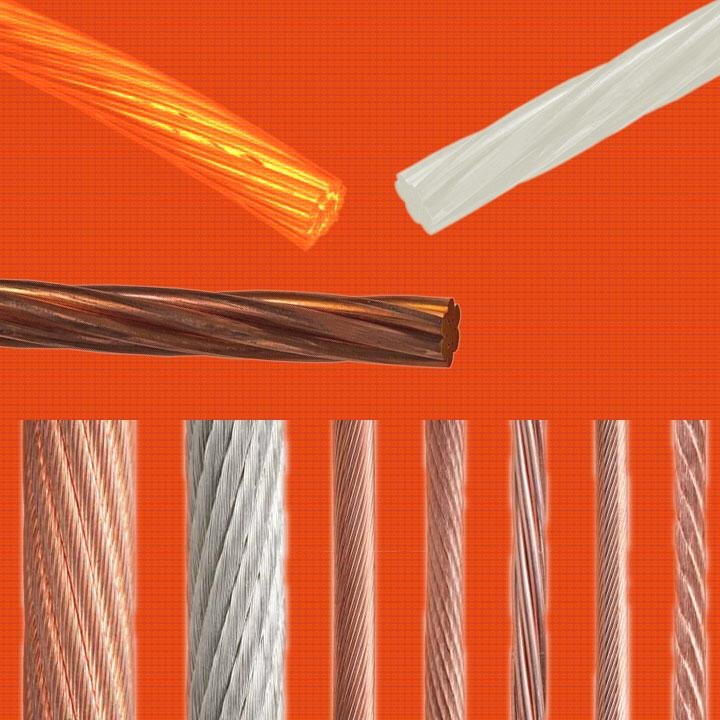

Our Round Copper Braid Stranded Rope are available with plain, tinned, nickel-plated or silver-plated surfaces, depending on your application. Round Copper Braid Stranded Rope stand out by being highly twist-free and having a compact cutting surface, which is important for your problem-free further processing. Our round copper rope can be woven with a left or right hand twist. Round, stranded copper flexible are used in welding and power equipment for electrical components such as switches as well as to conduct welding current (welding tools, robots and lines).These can be made from electrolytic copper Cu-ETP (grade C101) or from oxygen free copper.
Copper Rope braid
| Nominal area (mm2) | Diameter approx (mm) | Wire diameter (mm) |
|---|---|---|
| 6 | 4.3 | 0.15 |
| 10 | 5.4 | 0.15 |
| 16 | 6.8 | 0.15 |
| 25 | 8.2 | 0.15 |
| 35 | 10 | 0.15 |
| 50 | 11.8 | 0.15 |
Finish in Round Copper Braid Stranded Rope:
Even though Round Copper Braid Stranded Rope are standard items, we also make special tailor made products made exactly to the requirements of our customers. Our wide range of copper braid products is available in the following copper wire finishes:
- Bare copper / Plain copper / red copper

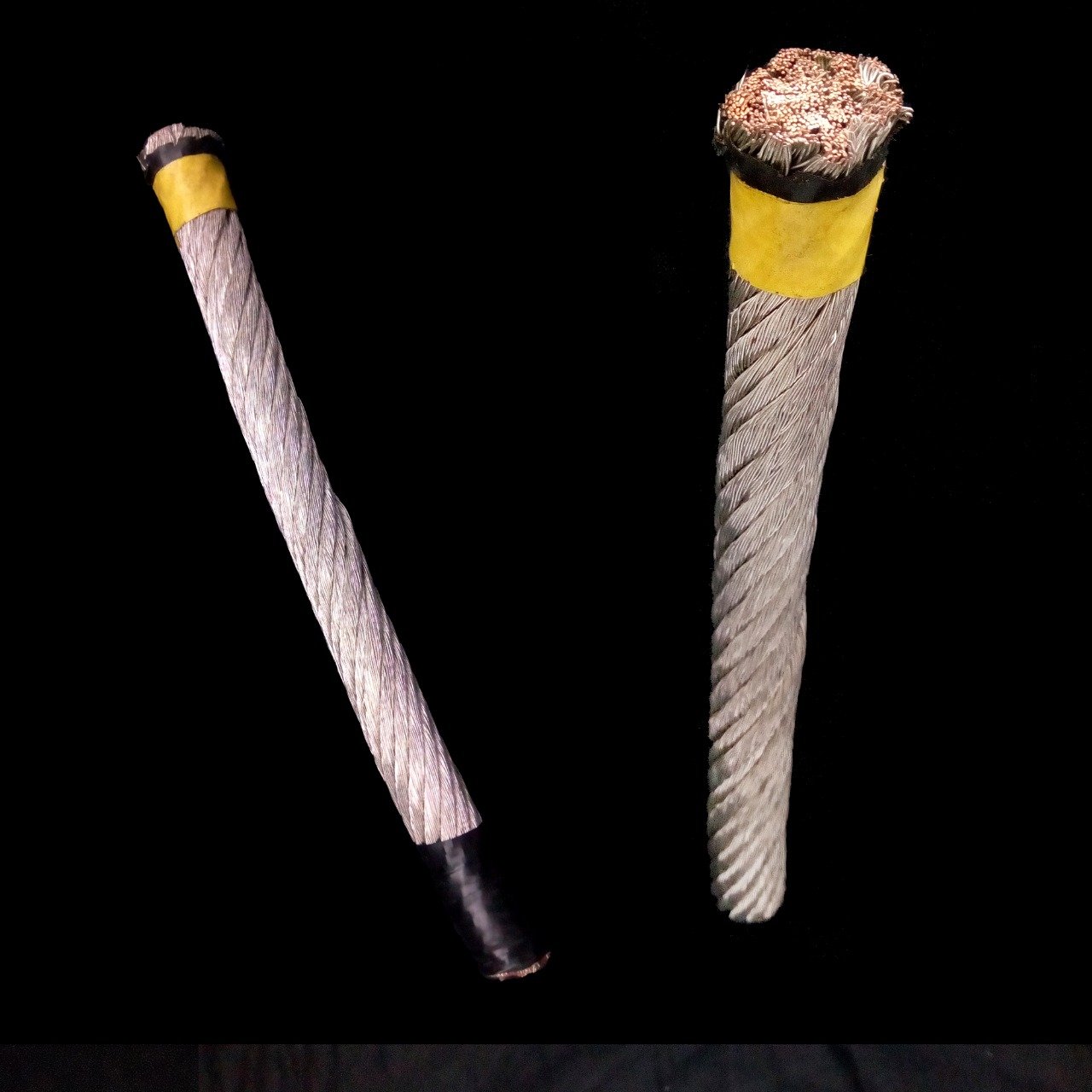

- Electro tin plated copper
- 99.99% pure Silver electro plated copper
- Enamel coated, which insulates each wire
- And other finishes on request.
We use the finest quality material for Round Copper Braid to ensure consistency of quality and performance, drawing on our supplier's decades of experience in drawing, stranding and braiding, as well as surface treatment.

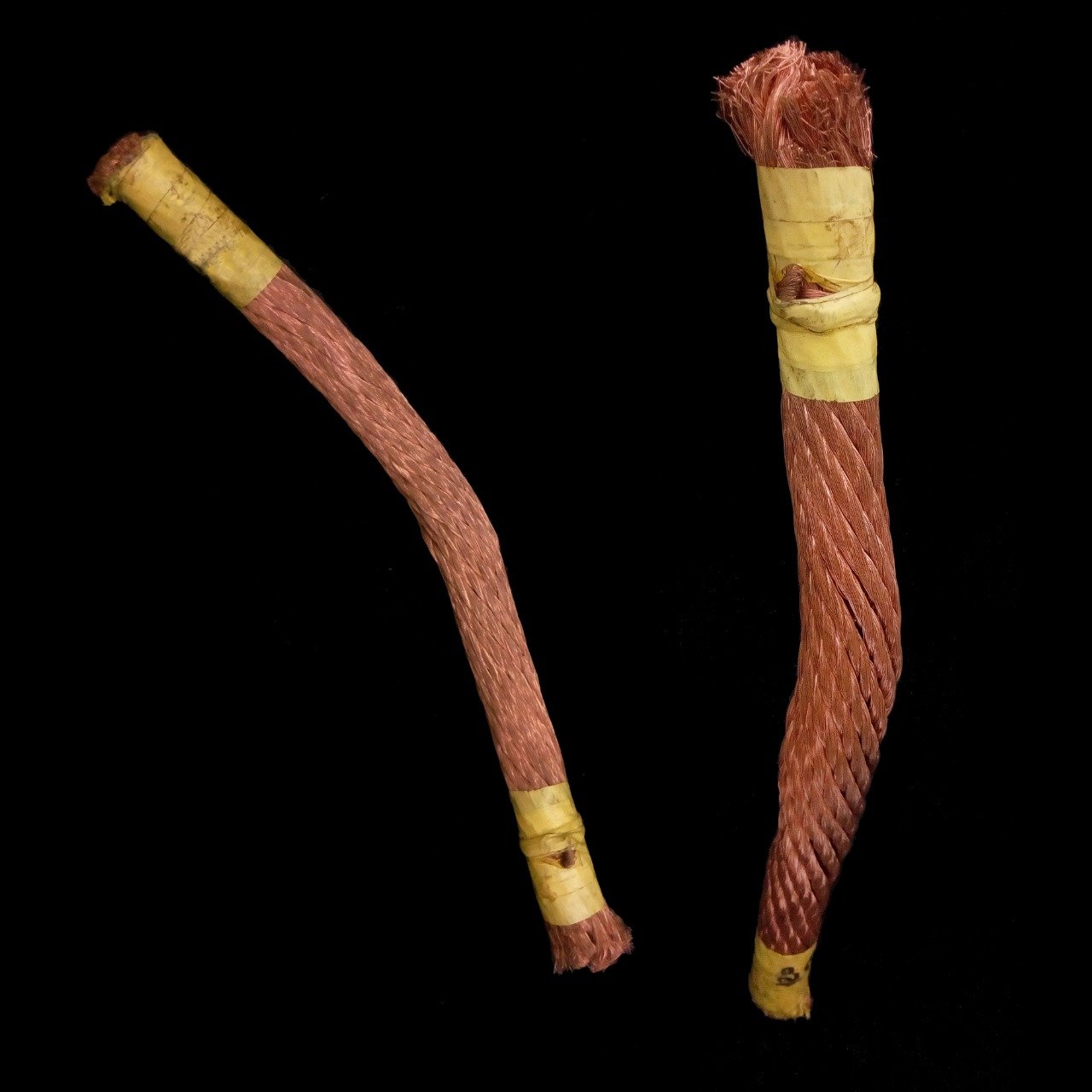

Bare Copper Flexible Conductors - Construction And DIA
| Nominal Section Area mm2 | Conceptual Construction Of Flexible | Approximate Diameter Of Conductor |
|---|---|---|
| Conductors NO/Diameters Of Wires mm | Bunched & MultipleStranded Mm | |
| 1 | 32/0.20 | 1.32 |
| 1.25 | 40/0.20 | 1.48 |
| 1.35 | 19/0.30 | 1.5 |
| 1.5 | 30/0.25 | 1.6 |
| 2.5 | 50/0.25 | 2 |
| 4 | 56/0.25 | 2 |
| 6 | 84/0.30 | 3.6 |
| 10 | 80/0.40 | 4.6 |
| 16 | 126/0.40 | 5.7 |
| 25 | 196/0.40 | 7.1 |
| 35 | 276/0.40 | 8.5 |
| 50 | 396/0.40 | 10.3 |
| 70 | 360/0.40 | 12.4 |
| 95 | 475/0.50 | 14.5 |
| 120 | 608/0.50 | 16 |
| 150 | 756/0.50 | 18 |
| 185 | 925/0.50 | 20 |
| 240 | 1221/0.50 | 23 |
| 300 | 1525/0.50 | 26 |
| 400 | 2013/0.50 | 33.5 |
| 500 | 1769/0.60 | 33.5 |
| 600 | 2257/0.60 | 37 |
N.B:- Std Data Is Givan Any Configuration Will Be provided As Per Requirment Depending Upon
- Wire Data
- Flexibility Required
- Insulation Of Cotton,Paper,Polyester,nomex Etc
